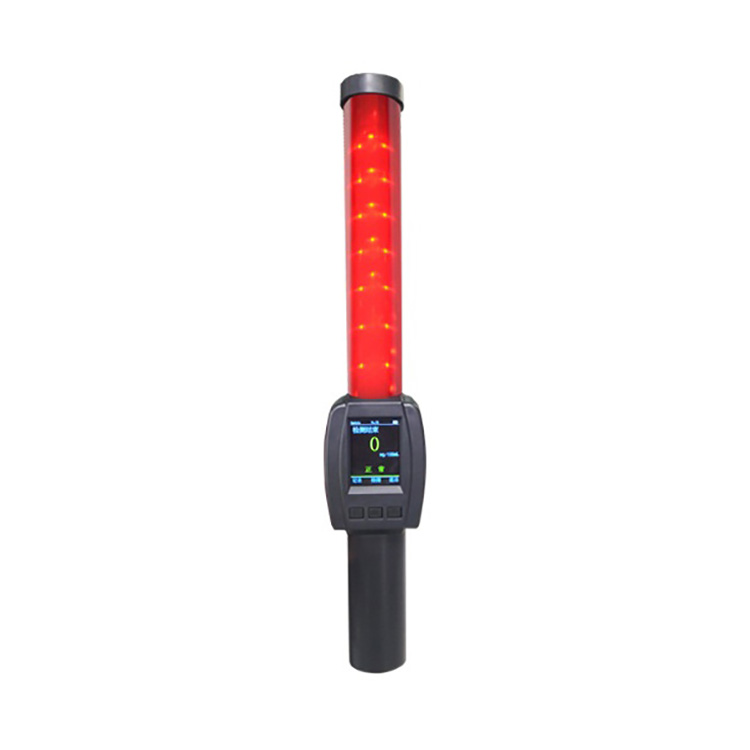

Personal and Professional Alcohol Tester
  • Personal and Professional Alcohol Tester Personal and Professional Alcohol Tester

Personal and Professional Alcohol Tester

Personal and Professional Alcohol Tester: When the gas sensor cannot detect alcohol, the level of the fifth pin added to A is low. When the gas sensor detects alcohol, its internal resistance becomes low, so that the level of the fifth pin of A becomes high. A is the display pusher, which has 10 output terminals, and each output terminal can drive A light-emitting diode. The display pusher A determines the sequence of lighting the light-emitting diode according to the level of the 5th pin. The higher the alcohol content, the larger the sequence of lighting the secondary tube. The five leds above are red, indicating that they exceed the safe level. The following five leds are green, indicating a safe level of no more than 0.05% alcohol.

Send Inquiry

Product Description

1. Product Introduction of Personal and Professional Alcohol Tester

Personal and Professional Alcohol Tester: A breathalyzer is a device used to detect whether and to what extent a person ingests alcohol. It can be used as a detection tool for traffic police to detect how much drinking drivers drink, so as to effectively reduce the occurrence of serious traffic accidents. It can also be used in other occasions to detect the alcohol content in human exhaled gas to avoid heavy losses of casualties and property. For example, in some high-risk areas, enterprises are forbidden to work after drinking.

2. Product Parameter (Specification) of Personal and Professional Alcohol Tester

Model ZM-2100
Sensor Electrochemical alcohol sensor
Measuring range 0~220mg/100ml(0~1.000mg/L)
Preheat time No need
Response time 1s
Sampling method Air pump, actively and continuously pumps air
Drinking and driving threshold 0.090 mg/L(20mg/100ml)
Drunk driving threshold 0.363 mg/L(80mg/100ml)
Storage temperature -30℃~70℃
Operating temperature 0℃~50℃
Continuous working time >20h
Dimensions (380*67*45)mm
Weight 160g
Calibration cycle 6 months

3. Product Feature And Application of Personal and Professional Alcohol Tester

Personal and Professional Alcohol Tester:

◆ Stick-style design, beautiful image, no mouthpiece

◆ Continuous and fast automatic detection, the test can be completed without pressing a button

◆ Fast analysis technology, results in one second

◆ Matrix alarm lamp design, the result is clear at a glance

◆ With flashlight lighting function, suitable for night operation (optional)

◆ Non-contact pumping type, more environmentally friendly, healthier and safer

◆ The instrument adopts advanced ultra-low power consumption microprocessor controller

◆ LCD color liquid crystal display, beautiful and clear

◆ Provide real-time time display function

◆ Two-level sound and light alarm information, the screen displays the alarm category (voice alarm (optional))

◆ Automatic shutdown under voltage and no operation

◆ The alarm point is adjustable, and the test unit can be switched

◆ Large amount of test information storage, can store no less than 100 storage results, easy to query

4. Product Details of Personal and Professional Alcohol Tester

5. Product Certification of Personal and Professional Alcohol Tester

Company Certification

Company Profile

Company Exhibition

6. Deliver,Shipping And Serving Of Personal and Professional Alcohol Tester

Shipping Method Shipping Terms Area
Express TNT /FEDEX /DHL/ UPS All Countries
Sea FOB/ CIF /CFR /DDU All Countries
Railway DDP/TT Europe Countries
Ocean +Express DDP/TT Europe Countries /USA/Canada/Australia /Southeast Asia /Middle East

7. FAQ of Personal and Professional Alcohol Tester

Q:Are you a trading company or a manufacturer?

R:We are a professional manfacturer and we have export service company.


Q:Can I have some samples before bluk order? Are Samples free?

R:Yes! We can send some samples. You pay the sample cost and freight.We return the sample cost after bluk order.


Q:What is your MOQ?

R:MOQ is 1000pcs.


Q:Do you accept trial order?

R:Yes! We accept the trial order.


Q:What is your payment term?

R:We accept Alipay,TT with 30% deposit.L/C at sight, Western Union.


Q:How long is your delivery time of Personal and Professional Alcohol Tester?

R:Usually 7~15 days.


Q:Do you have ODM and OEM service?

R:Yes, Logo printing as customer's design sticker, hangtag ,boxes,carton making.


Q:You have sales target finished amount requirement to the distributor?

R:Yes! We can be our distributor when you order is over $30000.00.


Q:Can I be your agency?

R:Yes! The sales target finished amount is $500000.00.


Q:Do you have office Yiwu, Guangzhou, Hongkong?

R:Yes! We have!


Q:Which certificate do your factory?

R:CE, FDA and ISO.


Q:Will you will attend the fair to show your products?

R:Yes, we also can camera with you when you need.


Q:Can I delivery the goods from other supplier to your factory? Then load together?

R:Yes! We can do that.


Q:Can I transfer the money to you then you pay to other supplier?

R:Yes!


Q:Can you do CIF price?

R:Yes, pls supply the destination to us.We will check the shipping cost to you.


Q:How to control the quality?

R:After order is confirmed, we have a meeting with the all dept. before production, investigate all the workmanship and technical details, make sure all the details are under control.


Q:What is your nearest port ?

R:Our nearest port is Xiamen,Fujian, China.
